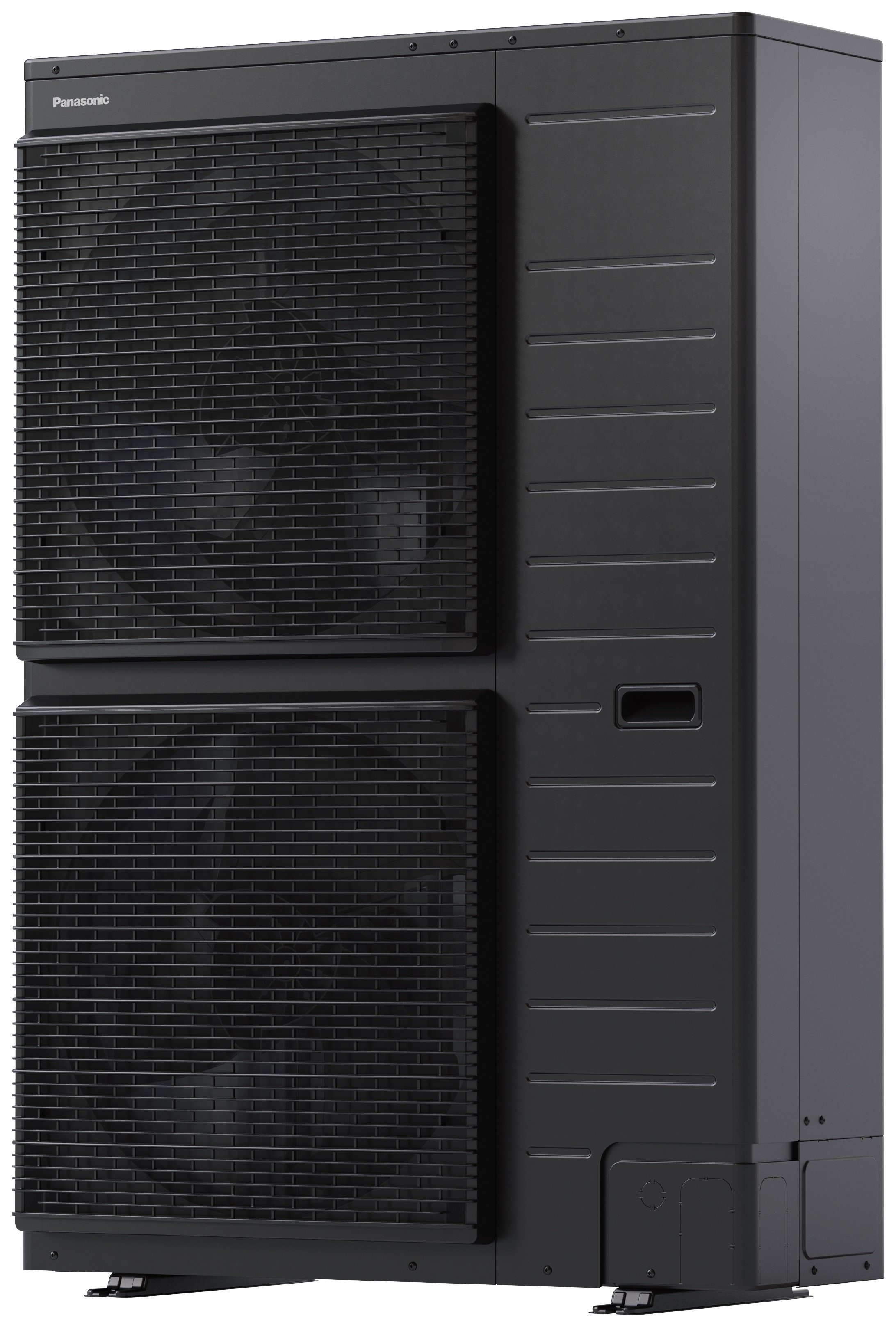

Panasonic WH-UXZ12KE5 Venkovní jednotka T-CAP 12 kW 230V R32

WH-UXZ12KE5 Panasonic WH-UXZ12KE5 Venkovní jednotka T-CAP 12 kW 230V R32

Panasonic WH-UXZ12KE5 Venkovní jednotka T-CAP 12 kW 230V R32

Outdoor unit WH-UXZ09KE5 WH-UXZ12KE5 WH-UXZ09KE8 WH-UXZ12KE8
Sound power 3) Heat dB(A) 65 65 65 65
Dimension / Net weight H x W x D mm / kg 1 340 x 900 x 320 / 88 1 340 x 900 x 320 / 88 1 340 x 900 x 320 / — 1 340 x 900 x 320 / —
Refrigerant (R32) / CO2 Eq. kg / T 1,60 / 1,08 1,60 / 1,08 1,60 / 1,08 1,60 / 1,08
Piping diameter Liquid / Gas Inch (mm) 1/4 (6,35) / 1/2 (12,70) 1/4 (6,35) / 1/2 (12,70) 1/4 (6,35) / 1/2 (12,70) 1/4 (6,35) / 1/2 (12,70)
Pipe length range / Elevation difference (in / out) m / m 3 ~ 30 / 20 3 ~ 30 / 20 3 ~ 30 / 20 3 ~ 30 / 20
Pre-charged pipe length / Additional gas amount m / g/m 10 / 30 10 / 30 10 / 30 10 / 30
Operating range - outdoor
ambient
Heat °C -28 ~ +35 -28 ~ +35 -28 ~ +35 -28 ~ +35
Cool °C +10 ~ +43 +10 ~ +43 +10 ~ +43 +10 ~ +43
Water outlet Heat / Cool °C 20 ~ 60 / 5 ~ 20 20 ~ 60 / 5 ~ 20 20 ~ 60 / 5 ~ 20 20 ~ 60 / 5 ~ 20
